Jumbo System Models
Kirkpatrick Jumbo Model Wire Rope Lubrication Systems
Prior to Reviewing System Information:
All Kirkpatrick Wire Rope Lubrication Systems are provided as an all-inclusive package. There is no itemized charge for each of the components listed in the Main System Package.

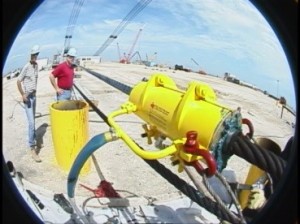

The Jumbo Systems’ maximum rated pumping capacity of 24 Pounds / 10.9 Kilograms per minute can keep up with faster Wire Rope Travel Speeds involving large Diameter Wire Ropes. These high flow capacities generate optimal pressurization inside the internal Seals for the deepest possible penetration and coating of individual Wire Strands. This also provides excellent fluid film support protection against friction wear from strand rubbing.
Available System Models
Kirkpatrick Jumbo Wire Rope Lubrication Systems are provided in Pail, Mid-Size Drums, and Full-Size Drum Configurations:
- Model JU35: Fit for 5 Gallon (35 Pound / 15.75 Kgs.) Size Pails
- Model JU120: Fit for 15 Gallon (120 Pound / 54.43 Kgs.) Mid-Sized Drum (Keg)
- Model JU400: Fit for 55-Gallon (400 Pound / 181.44 Kgs.) Full-Sized Drum
Testimonial
US NAVY Supervisor of Salvage Evaluation of the Kirkpatrick Model JU120 Wire Rope Lubricator
Mr. Raymond Beaudreau, a civilian consultant for Military Sealift Command, requested that the USNS Papago’s rusty and kinked 2-1/4 Inch (58mm) Tow Wire be used for the cleaning operation. The Tow Wire was re-spooled at approximately 150 Feet (45 Meters) per minute through the Kirkpatrick Model JU120 Wire Rope Lubrication System.
Results: “Examined 2-¼ (58mm) Inch Tow Wire and found it scraped clean of rust and old Lubricant. New Lubricant had penetrated every visible part of the Wire Rope. The System performed well and achieved good results on the substantially degraded 2-¼ (58mm) Inch Tow Line. A job that took days was completed in a few hours.”
Historical Fact
The Kirkpatrick Model JU120 System was flown overnight to Martha’s Vineyard on July 17, 1999 by the United States Navy to be used on the Salvage Vessel USS Grasp’s 2-1/4 Inch (Towline) prior to lifting John F. Kennedy Jr’s. Airplane off of the bottom of the ocean. The main concern in the mission was that they could not risk a broken Wire Rope in the middle of the lift.
The JU120 Jumbo System gave them that added insurance. Before this project, they had integrated (172) Model JU120 Systems into the fleet.
Kirkpatrick Jumbo Model JU35 Wire Rope Lubrication System
Jumbo System: Fit for 35 Pound / 15.75 Kilogram / 5 Gallon Sized Pails
Accommodates Wire Rope / Seal Diameters up to 4-1/4 Inch (108mm)
| 1 | Heavy Duty, Light Weight Aluminum Lubrication Collar Wire Rope Diameters to 4-1/4Inch (108mm) Twin Sided (Duo lube) Feed Design |
| 1 | One Diameter Seal & Scraper Plate Kit: Scraper Plates are part of the Seal and Scraper Kit and are not sold at an additional charge as is the case with competitive brand Wire Rope Lubrication Systems. The Customer specifies the Diameter Seal & Scraper Plate Kit required when placing their order. |
| 1 | One Diameter & Lay Wire Rope Groove Cleaner Kit: Includes 2 Individual Groove Cleaners (4 Parts) The Customer specifies Diameter, the Number of Outer Strands and Lay Direction Note: Our Competition Charges this item as an additional component apart from their Complete System and then only provides one individual Groove Cleaner, not two, as is the case with Kirkpatrick supplied Groove Cleaner Kits. |
| 1 | 40:1 Ratio Pump (Fit for 35 Pound / 5 Gallon Size Drums) 24 Pound / 10.9 Kilograms per minute maximum flow rate at 120 PSI Air Setting. |
| 1 | 35 Pound / 15.75 Kilogram / 5 Gallon Sized Follower Plate |
| 1 | 35 Pound / 15.75 Kilogram / 5 Gallon Sized Pail Cover |
| 1 | Air Regulator/ Filter/Oiler Assembly with Gauge, 150 PSI Rated |
| 1 | Stainless Steel Lubricant Flow Control Valve |
| 1 | 2,500 PSI Rated 10 Foot / 3-Meter Lubricant Supply Hose · Complete with Brass Push to Pull Quick Couplers · Custom Lengths Available Upon Request. |
| 1 | 3 foot / .91-meter Duo-Lube Assembly Hose to accommodate the twin feed requirement of the Jumbo Lubrication Collar-2,500 PSI Rated with Brass Push to Pull Quick Coupler Connections |
| 1 | One Sample Pail of Environmentally Acceptable (EAL) Dynagard™ Blue™ or Dynagard™ Blue CSS13™ Wire Rope Lubricant |
| 1 | Heavy Duty Storage Case Approved by Military & Law Enforcement |
Kirkpatrick Jumbo Model JU120 Wire Rope Lubrication System
U.S. / NATO National Stock Number Model JU120 Complete System: NSN: 4930-01-319-0787:
U.S. / NATO National Stock Number Model JU120P Replacement Pump: NSN: 4930-01-313-8773
Stock System Terminology for both items: Lubricating Unit
| 1 | Heavy Duty, Light Weight Aluminum Lubrication Collar · Wire Rope Diameters to 4-1/4 Inch (108mm) · Two-sided (Duo lube) Feed Design |
| 1 | One Diameter Seal & Scraper Plate Kit: Scraper Plates are part of the Seal and Scraper Kit and are not sold at an additional charge as is the case with competitive brand Wire Rope Lubrication Systems. The Customer specifies the Diameter Seal & Scraper Plate Kit required when placing their order. |
| 1 | One Diameter & Lay Wire Rope Groove Cleaner Kit: Includes 2 Individual Groove Cleaners (4 Parts) The Customer specifies Diameter, the Number of Outer Strands and Lay Direction Note: Our Competition Charges this item as an additional component apart from their Complete System and then only provides one individual Groove Cleaner, not two, as is the case with Kirkpatrick supplied Groove Cleaner Kits. |
| 1 | 40:1 Ratio Pump (Fit for 120 Pound Size Drums) 24 Pound / 10.9 Kilogram per minute maximum flow rate at 120 PSI Air Setting |
| 1 | 120 Pound / 54 Kilogram / 16 Gallon Sized Follower Plate |
| 1 | 120 Pound / 54 Kilogram / 16 Gallon Sized Drum Cover |
| 1 | Air Regulator/ Filter/Oiler Assembly with Gauge. 150 PSI Rated |
| 1 | Stainless Steel Lubricant Flow Control Valve |
| 1 | 2,500 PSI Rated 10 Foot / 3-Meter Lubricant Supply Hose · Complete with Brass Push to Pull Quick Coupler · Custom lengths available upon request. |
| 1 | 3 foot / .91-meter Duo-Lube Assembly Hose to accommodate the twin feed requirement of the Jumbo Lubrication Collar-2,500 PSI Rated with Brass Push to Pull Quick Coupler Connections |
| 1 | One Sample Pail of Environmentally Acceptable (EAL) Dynagard™ Blue™ or Dynagard™ Blue CSS13™ Wire Rope Lubricant |
| 1 | Heavy Duty Storage Case Approved by Military & Law Enforcement |
Kirkpatrick Jumbo Model JU400 Wire Rope Lubrication System
Jumbo System: fit for 400 Pound / 180 Kilogram/ 55 Gallon Sized Drums
Note: This System is the same operationally as the JU120 except it is for full-size drums
| 1 | Heavy Duty, Light Weight Aluminum Lubrication Collar Wire Rope Diameters to 4-1/4 Inch (108mm) Two-sided (Duo lube) Feed Design |
| 1 | One Diameter Seal & Scraper Plate Kit: Scraper Plates are part of the Seal and Scraper Kit and are not sold at an additional charge as is the case with competitive brand Wire Rope Lubrication Systems. The Customer specifies the Diameter Seal & Scraper Plate Kit required when placing their order. |
| 1 | One Diameter & Lay Wire Rope Groove Cleaner Kit: Includes 2 Individual Groove Cleaners (4 Parts) The Customer specifies Diameter, the Number of Outer Strands and Lay Direction Note: Our Competition Charges this item as an additional component apart from their Complete System and then only provides one individual Groove Cleaner, not two, as is the case with Kirkpatrick supplied Groove Cleaner Kits. |
| 1 | 40:1 Ratio Pump 24lb / 10.9 Kilograms per minute maximum flow rate at 120 PSI Air Setting. |
| 1 | 400 Pound / 180 Kilogram / 55 Gallon Sized Follower Plate |
| 1 | 400 Pound / 180 Kilogram / 55 Gallon Sized Drum Cover |
| 1 | Air Regulator/ Filter/Oiler Assembly with Gauge. 150 PSI Rated |
| 1 | Stainless Steel Lubricant Flow Control Valve |
| 1 | 2,500 PSI Rated 10 Foot / 3-Meter Lubricant Supply Hose · Complete with Brass Push to Pull Quick Couplers · Custom Lengths Available Upon Request |
| 1 | 3 foot / .91-meter Duo-Lube Assembly Hose to accommodate the twin feed requirement of the Jumbo Lubrication Collar-2,500 PSI Rated with Brass Push to Pull Quick Coupler Connections |
| 1 | One Sample Pail of Environmentally Acceptable (EAL) Dynagard™ Blue™ or Dynagard™ Blue CSS13™ Wire Rope Lubricant |
| 1 | Heavy Duty Storage Case Approved by Military & Law Enforcement |
